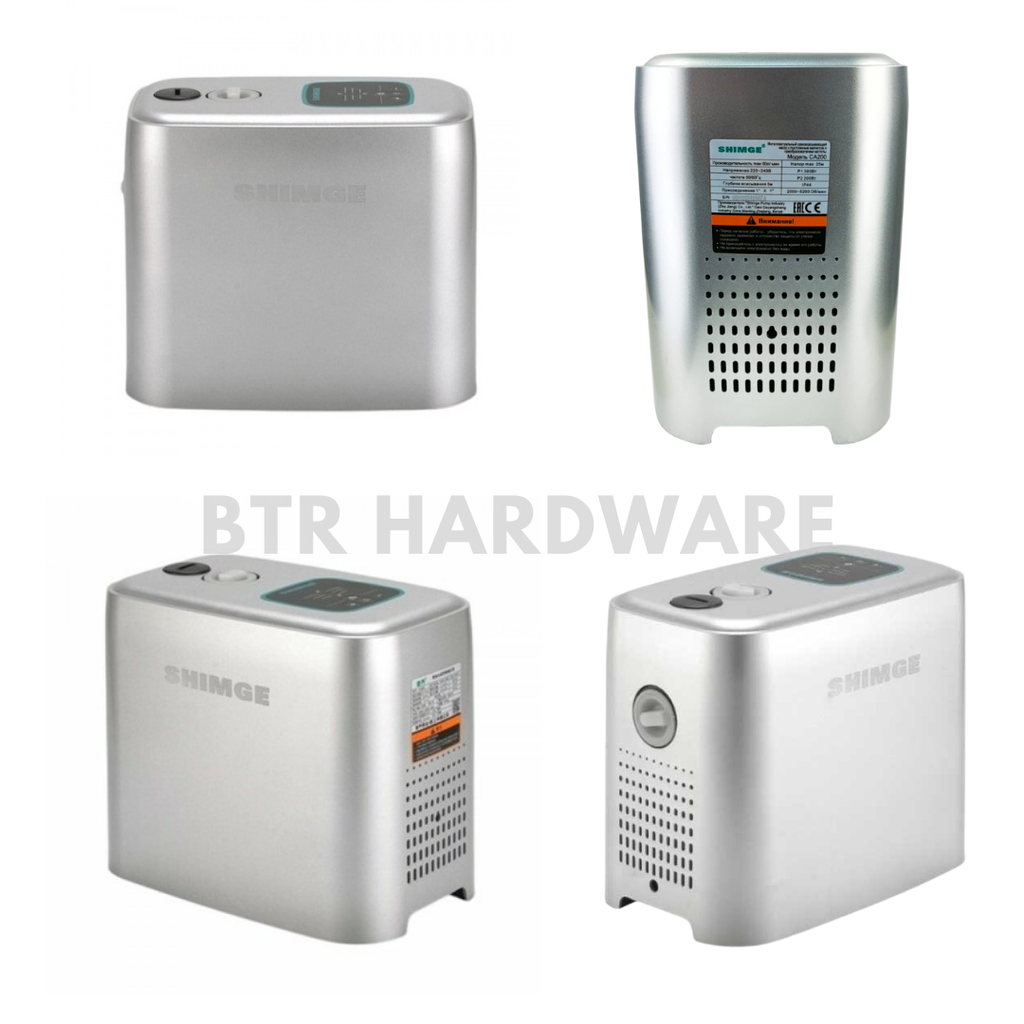

SHIMGE Intelligent Permanent Magnet Variable Frequency Booster Pump CA200

RM 750.00
RM 750.00
RM 0.00
Worldwide shipping | BITARA HARDWARE
Worldwide shipping
Secure payments | BITARA HARDWARE
Secure payments
Authentic products | BITARA HARDWARE
Authentic products
SHIMGE Intelligent Permanent Magnet Variable Frequency Booster Pump CA200 Ratings: 0 - 0 votes
View More

MODEL : CA200

Intelligent permanent magnet variable frequency booster pump CA is new-generation variable frequency constant pressure water supply equipment mainly composed of controller,permanent magnet motor, electric pump and pressure tank. The electric pump adopts centrifugal impeller and guide vane structure, and is featured by large flow,stable operation,low noise, attractive appearance, compact structure, and easy installation and operation; it can automatically adjust the operating frequency according to users' requirements to ensure constant pressure of users' pipe network and make the system run in a more efficient a and energy-saving manner.

Intelligent Permanent Magnet Variable Frequency Booster Pump CA

Performance Range

Max. Flow: 7.2m³/h
Max. Head: 50m

Certificate

Application Limits
◎

The conveying medium is clean water and other liquids with similar properties to water
◎

Medium temperature range 0℃ ~ +90℃（CA1000: 0℃ ~ +60℃）
◎

The pH of the medium is between 6.5 and 8.5
◎

The volume ratio of solid impurities is not more than 0.1%, and the particle size is not more than 0.2mm
◎

The voltage is single-phase AC 220V, and the voltage fluctuation range is ±10% of the rated value.

Motor
◎

Permanent magnet synchronous motor:
CA200 speed: 2000 ～ 5200r/min
CA600/CA1000 speed: 2500 ～ 5200r/min
◎

Frequency: 50Hz
◎

Protection class: IP55
◎

Insulation class: F

Application Fields

Villa water supply pressurization, community water supply pressurization, school water supply pressurization, small commercial water supply pressurization
